| Produkt | Onderdeelnummer | Aantal |
|---|
| Produkt | Onderdeelnummer | Aantal |
|---|
| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
4C8-23102-10 4C82310210 4C82310210 |

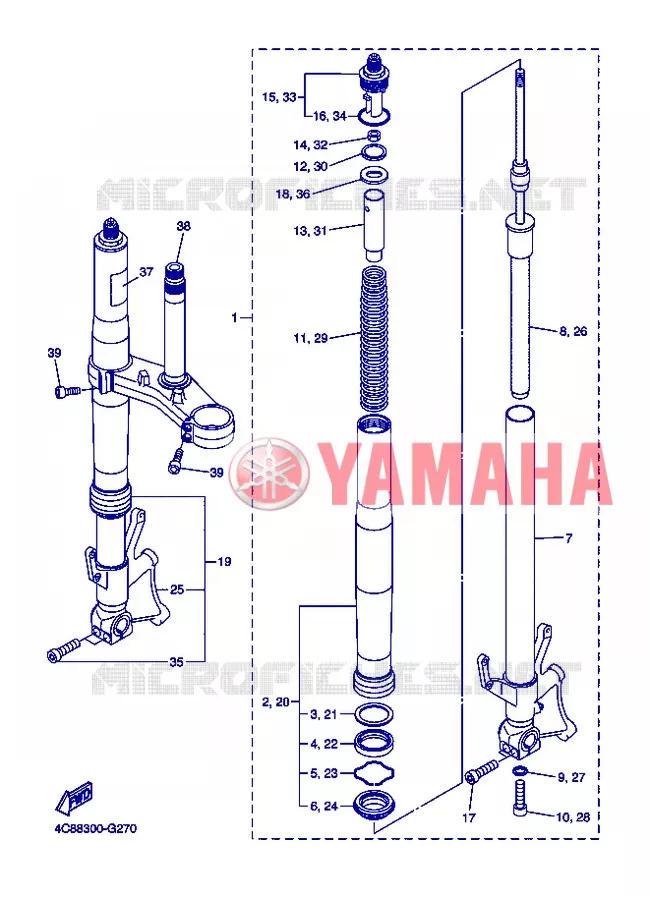

FRONT FORK ASSY (L.H)
|
Contact | |||
| # 2 |
4C8-23136-00 4C82313600 4C82313600 |
TUBE, OUTER (RIGHT)
|
||||
| # 2 |
4C8-23136-10 4C82313610 4C82313610 |
TUBE, OUTER (RIGHT)
|
Contact | |||
| # 3 |
5PW-23146-00 5PW2314600 5PW2314600 |
WASHER, OIL SEAL
|
||||
| # 4 |
4PU-23145-01 4PU2314501 4PU2314501 |
OIL SEAL
|
||||
| # 5 |
4V4-23153-L0 4V423153L0 4V423153L0 |
RING, SNAP
|
||||
| # 6 |
4PU-23144-00 4PU2314400 4PU2314400 |
SEAL, DUST
|
||||
| # 7 |
4C8-23110-00 4C82311000 4C82311000 |
INNER TUBE COMP.1
|
Contact | |||
| # 8 |
4C8-23170-00 4C82317000 4C82317000 |
CYLINDER COMP., FRONT FORK
|
Contact | |||
| # 9 |
509-23158-L0 50923158L0 50923158L0 |
GASKET
|
||||
| # 10 |
5UX-23181-00 5UX2318100 5UX2318100 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 11 |
4C8-23141-00 4C82314100 4C82314100 |
SPRING, FRONT FORK
|
||||
| # 12 |
5VY-12277-00 5VY1227700 5VY1227700 |
WASHER
|
||||
| # 13 |
5VY-23118-00 5VY2311800 5VY2311800 |
SPACER
|
||||
| # 14 |
3SP-23357-L0 3SP23357L0 3SP23357L0 |
NUT
|
||||
| # 15 |
4C8-23111-00 4C82311100 4C82311100 |
BOLT, CAP
|
Contact | |||
| # 16 |
3XJ-23147-L0 3XJ23147L0 3XJ23147L0 |
O-RING
|
||||
| # 17 |
91314-08040 9131408040 9131408040 |
BOLT, SOCKET
|
||||
| # 18 |
4C8-23149-00 4C82314900 4C82314900 |
WASHER, SPRING UPPER
|
Contact | |||
| # 19 |
4C8-23103-10 4C82310310 4C82310310 |
FRONT FORK ASSY (R.H)
|
Contact | |||
| # 20 |
4C8-23136-00 4C82313600 4C82313600 |
TUBE, OUTER (RIGHT)
|
||||
| # 20 |
4C8-23136-10 4C82313610 4C82313610 |
TUBE, OUTER (RIGHT)
|
Contact | |||
| # 21 |
5PW-23146-00 5PW2314600 5PW2314600 |
WASHER, OIL SEAL
|
||||
| # 22 |
4PU-23145-01 4PU2314501 4PU2314501 |
OIL SEAL
|
||||
| # 23 |
4V4-23153-L0 4V423153L0 4V423153L0 |
RING, SNAP
|
||||
| # 24 |
4PU-23144-00 4PU2314400 4PU2314400 |
SEAL, DUST
|
||||
| # 25 |
4C8-23120-00 4C82312000 4C82312000 |
INNER TUBE COMP.2
|
Contact | |||
| # 26 |
4C8-23170-00 4C82317000 4C82317000 |
CYLINDER COMP., FRONT FORK
|
Contact | |||
| # 27 |
509-23158-L0 50923158L0 50923158L0 |
GASKET
|
||||
| # 28 |
5UX-23181-00 5UX2318100 5UX2318100 |
BOLT, HEXAGON SOCKET HEAD
|
||||
| # 29 |
4C8-23141-00 4C82314100 4C82314100 |
SPRING, FRONT FORK
|
||||
| # 30 |
5VY-12277-00 5VY1227700 5VY1227700 |
WASHER
|
||||
| # 31 |
5VY-23118-00 5VY2311800 5VY2311800 |
SPACER
|
||||
| # 32 |
3SP-23357-L0 3SP23357L0 3SP23357L0 |
NUT
|
||||
| # 33 |
4C8-23111-00 4C82311100 4C82311100 |
BOLT, CAP
|
Contact | |||
| # 34 |
3XJ-23147-L0 3XJ23147L0 3XJ23147L0 |
O-RING
|
||||
| # 35 |
91314-08040 9131408040 9131408040 |
BOLT, SOCKET
|
||||
| # 36 |
4C8-23149-00 4C82314900 4C82314900 |
WASHER, SPRING UPPER
|
Contact | |||
| # 37 |
5PW-23472-00 5PW2347200 5PW2347200 |
PROTECTOR
|
||||
| # 38 |
4C8-23340-00 4C82334000 4C82334000 |
UNDER BRACKET COMP.
|
||||
| # 39 |
91314-08030 9131408030 9131408030 |
BOLT, SOCKET
|
Yamaha YZF-R1 R1
Cilinderinhoud: 1000 Jaar: 2008 Model code 4C88 Kleur: DARK GRAY METALLIC G
