| Onderdeelnummer | Produkt | Stukprijs Incl. BTW | Aantal | |||
|---|---|---|---|---|---|---|
| # 1 |
5JJ-14900-10 5JJ1490010 5JJ1490010 |

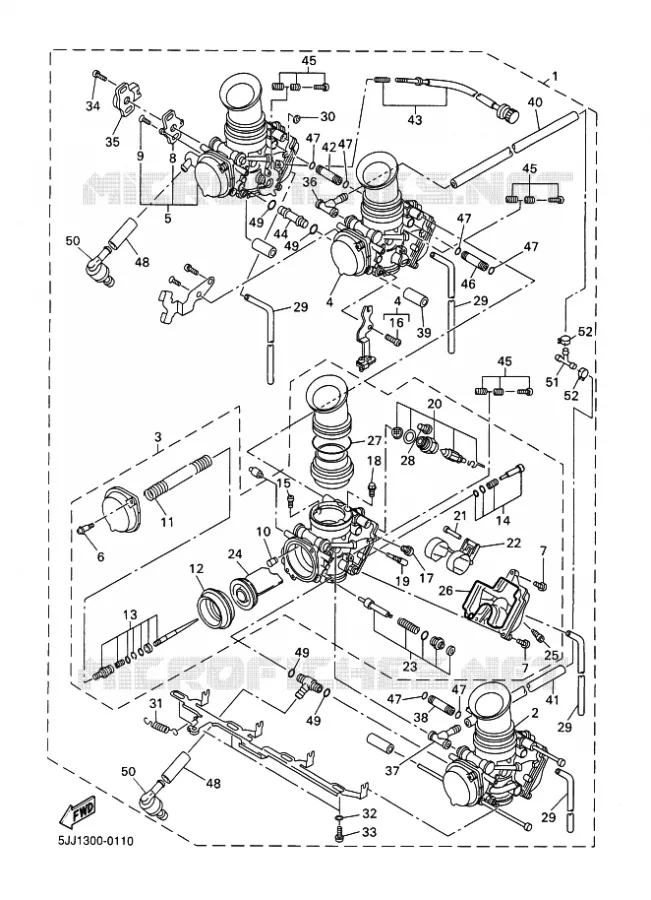

CARBURATEUR COMPLET
|
Contact | |||
| # 2 |
5JJ-14901-10 5JJ1490110 5JJ1490110 |
CARBURATEUR 1 COMPLET
|
Contact | |||
| # 3 |
5JJ-14902-10 5JJ1490210 5JJ1490210 |
CARBURATEUR 2 COMPLET
|
Contact | |||
| # 4 |
5JJ-14903-10 5JJ1490310 5JJ1490310 |
CARBURATEUR 3 COMPLET
|
Contact | |||
| # 5 |
5JJ-14904-10 5JJ1490410 5JJ1490410 |
CARBURATEUR 4 COMPLET
|
Contact | |||
| # 6 |
4KM-14216-00 4KM1421600 4KM1421600 |
SCREW
|
||||
| # 7 |
98507-05012 9851705012009850705012 |
SCREW, PAN
|
||||
| # 8 |
4KG-14995-00 4KG1499500 4KG1499500 |
SUPPORT
|
Contact | |||
| # 9 |
98707-04008 9870704008 9870704008 |
SCREW, FLAT
|
||||
| # 10 |
4SV-14968-00 4SV1496800 4SV1496800 |
COUVERCLE
|
Contact | |||
| # 11 |
4SV-14933-00 4SV1493300 4SV1493300 |
SPRING, DIAPHRAGM
|
Contact | |||
| # 12 |
4SV-24411-00 4SV2441100 4SV2441100 |
DIAPHRAGM
|
||||
| # 13 |
5EG-1490J-00 5EG1490J00 5EG1490J00 |
JEU D'AIGUILLES
|
Contact | |||
| # 14 |
4SV-14105-00 4SV1410500 4SV1410500 |
PILOT SCREW SET
|
||||
| # 15 |
4SV-14216-00 4SV1421600 4SV1421600 |
VIS
|
Contact | |||
| # 16 |
98507-05010 9851705010009850705010 |
SCREW, PAN HEAD(3LA)
|
||||
| # 17 |
3G2-14231-26 3G21423126A03G21423126 |
JET, MAIN (#130)
|
||||
| # 18 |
8CC-14232-24 8CC1423224 8CC1423224 |
GICLEUR, AIR (#120)
|
Contact | |||
| # 19 |
4KM-14142-15 4KM1414215 4KM1414215 |
JET, PILOT (# 15)
|
||||
| # 20 |
4KM-14107-15 4KM1410715 4KM1410715 |
NEEDLE VALVE SET
|
||||
| # 21 |
620-14186-00 6201418600 6201418600 |
PIN, FLOAT
|
Contact | |||
| # 22 |
4SV-14985-00 4SV1498500 4SV1498500 |
FLOAT
|
||||
| # 23 |
4SV-1410A-00 4SV1410A00 4SV1410A00 |
STARTER SET
|
||||
| # 24 |
4SV-14112-00 4SV1411200 4SV1411200 |
VALVE, THROTTLE 1
|
||||
| # 25 |
4KP-14191-00 4KP1419100 4KP1419100 |
PLUG, DRAIN
|
||||
| # 26 |
4XV-14562-00 4XV1456200 4XV1456200 |
O-RING
|
||||
| # 27 |
4XV-14275-00 4XV1427500 4XV1427500 |
RESSORT
|
Contact | |||
| # 28 |
1FN-14565-00 1FN1456500 1FN1456500 |
SCREW
|
||||
| # 29 |
3JE-14197-00 3JE1419700 3JE1419700 |
PIPE
|
Contact | |||
| # 30 |
28V-14952-00 28V1495200 28V1495200 |
RONDELLE
|
Contact | |||
| # 31 |
4SV-14935-00 4SV1493500 4SV1493500 |
SPRING
|
Contact | |||
| # 32 |
4NK-14327-00 4NK1432700 4NK1432700 |
PACKING
|
||||
| # 33 |
4XV-24453-00 4XV2445300 4XV2445300 |
SCREW
|
||||
| # 34 |
4KM-24453-00 4KM2445300 4KM2445300 |
SCREW
|
||||
| # 35 |
4SV-85885-00 4HD8588500004SV8588500 |
THROTTLE SENSOR ASSY
|
||||
| # 36 |
4SV-14987-00 4SV1498700 4SV1498700 |
DURITE
|
Contact | |||
| # 37 |
4XV-90445-00 4XV9044500 4XV9044500 |
HOSE
|
||||
| # 38 |
4XV-14149-30 4XV1414930 4XV1414930 |
DURITE
|
Contact | |||
| # 39 |
4XV-14149-60 4XV1414960 4XV1414960 |
DURITE
|
Contact | |||
| # 40 |
4SV-14987-30 4SV1498730 4SV1498730 |
HOSE (L250)
|
Contact | |||
| # 41 |
4XV-90445-10 4XV9044510 4XV9044510 |
DURITE
|
Contact | |||
| # 42 |
4XV-14149-40 4XV1414940 4XV1414940 |
DURITE
|
Contact | |||
| # 43 |
4XV-14103-00 4XV1410300 4XV1410300 |
THROTTLE SCREW SET
|
Contact | |||
| # 44 |
4XV-14149-90 4XV1414990 4XV1414990 |
DURITE
|
Contact | |||
| # 45 |
3EN-1490K-00 4KM1490K00003EN1490K00 |
STOP SCREW SET
|
||||
| # 46 |
4XV-14149-70 4XV1414970 4XV1414970 |
DURITE
|
Contact | |||
| # 47 |
36Y-14147-00 36Y1414700 36Y1414700 |
O-RING
|
||||
| # 48 |
3LN-14348-00 3LN1434800 3LN1434800 |
DURITE
|
Contact | |||
| # 49 |
3LN-1416A-00 3LN1416A00 3LN1416A00 |
O-RING
|
||||
| # 50 |
3LN-24515-00 3LN2451500 3LN2451500 |
NET, FILTER 2
|
||||
| # 51 |
90413-10016 9041310016 9041310016 |
WAY 3(47X)
|
Contact | |||
| # 52 |
90467-11090 9046710135009046711090 |
CLIP(3BM)
|
Yamaha YZF-R1 R1
Cilinderinhoud: 1000 Jaar: 2001 Model code 5JJ9 Kleur: DEEP PURPLISH BLUE METALLIC C
